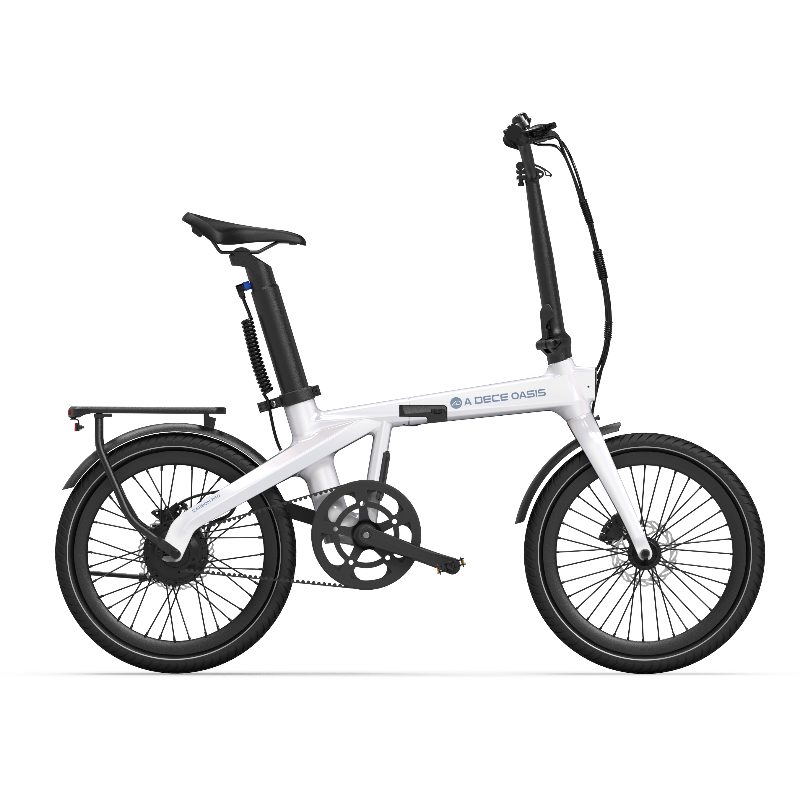

As the premium evolution of our classic lightweight carbon fiber foIding e-bike, the ADO Air Carbon Pro pushes the boundaries of performance and smart integration.

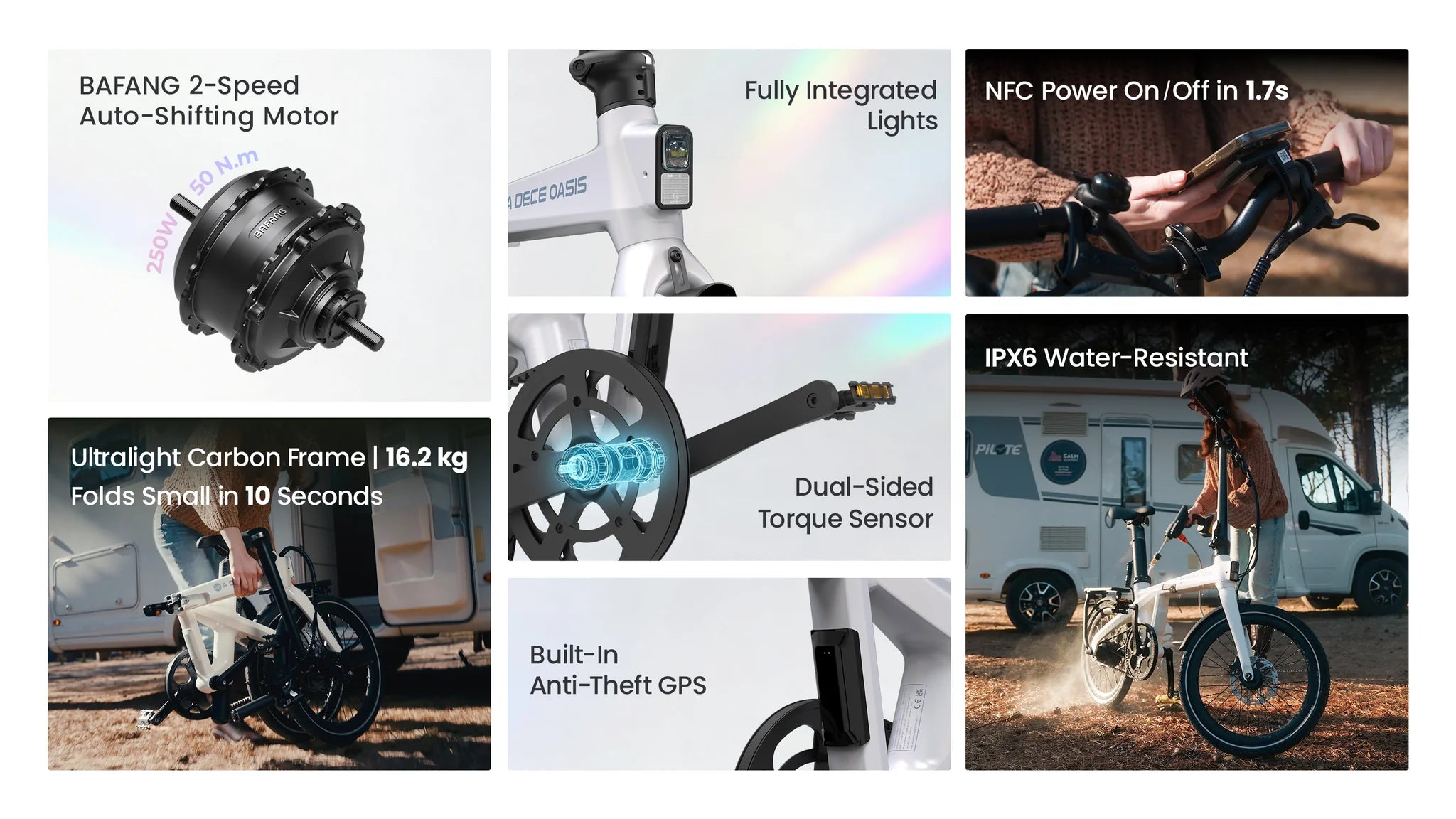

- Ultralight Carbon E-Bike | 16.2 kg
- BAFANG 2-Speed Auto-Shifting Motor
- Dual-Sided Torque Sensor
- Built-In Anti-Theft GPS
- NFC Power On/Off in 1.7s
- IPX6 Water-Resistant
NSW Compliance Certificate Mark: OZC-251209-EA
Built to Go Anywhere
The Featherweight Champion
Designed for life beyond the city
(New)

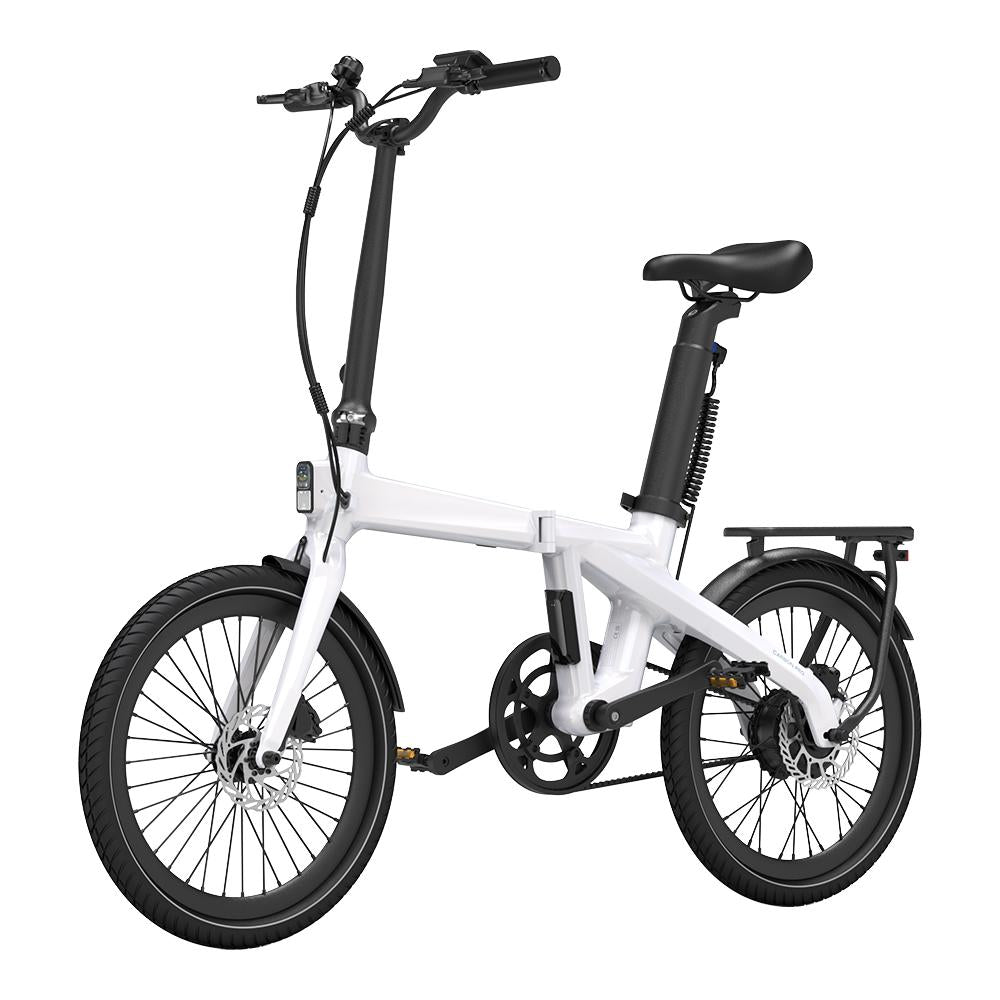

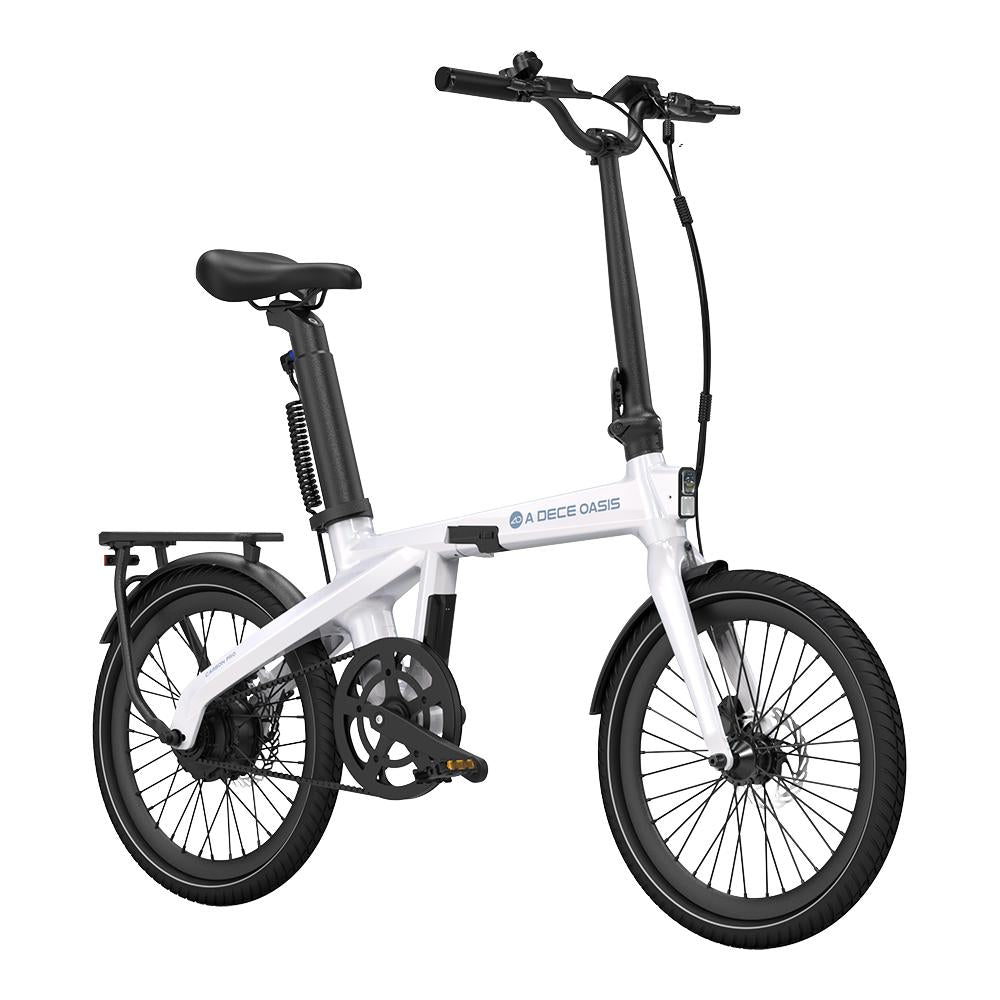

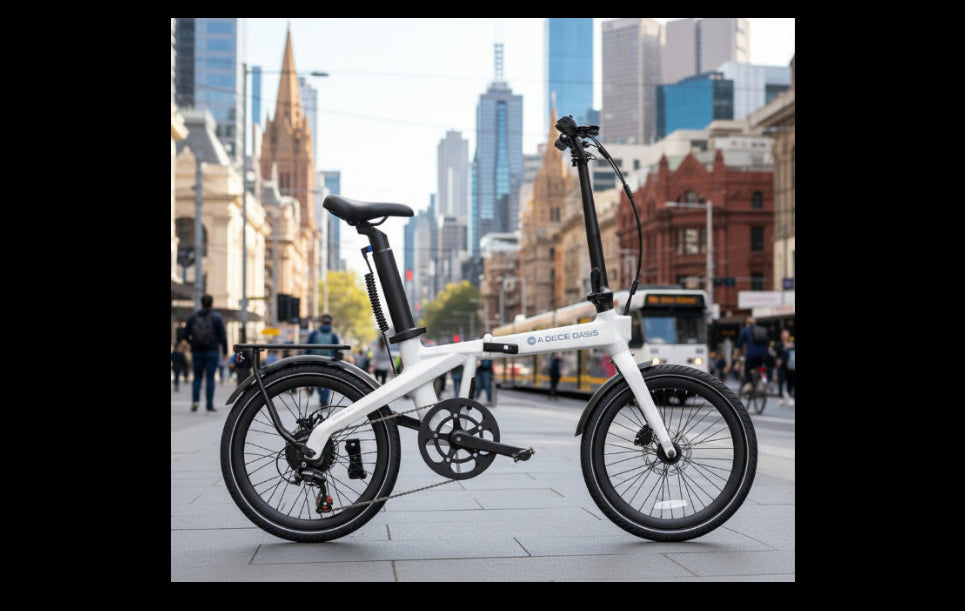

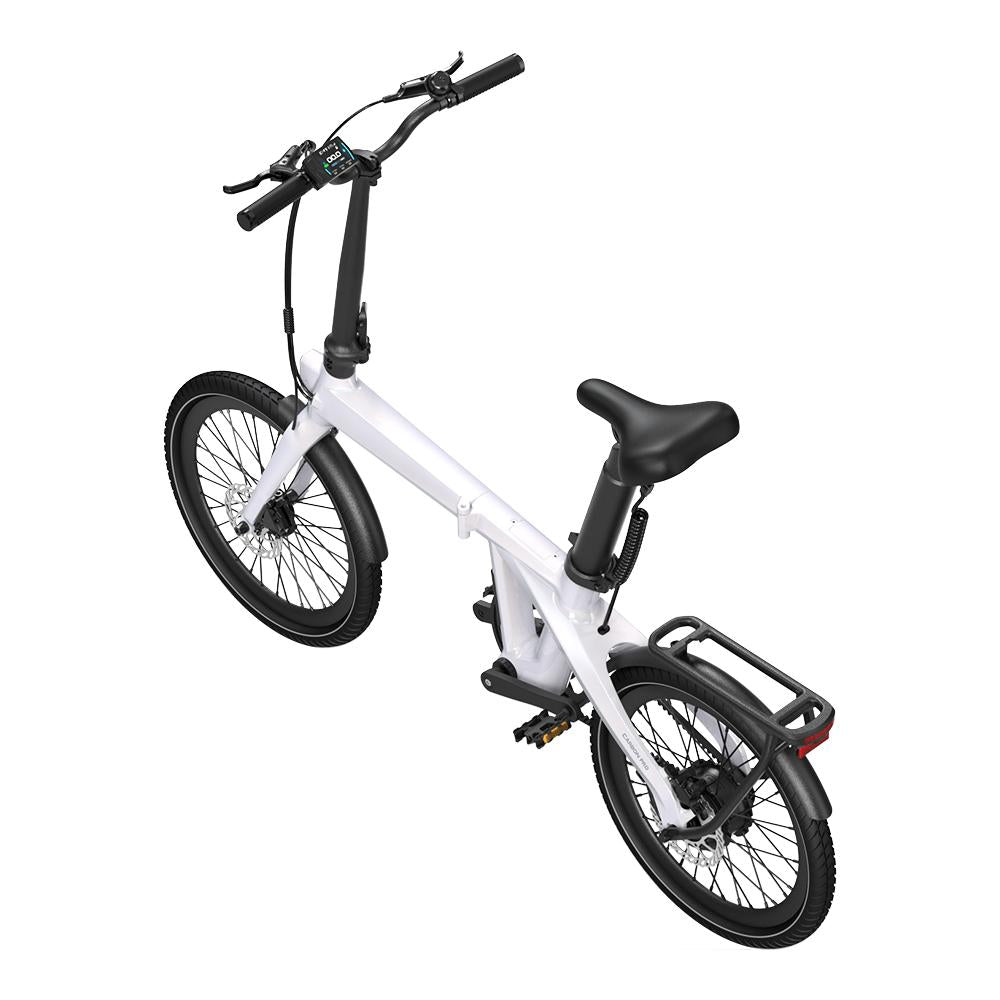

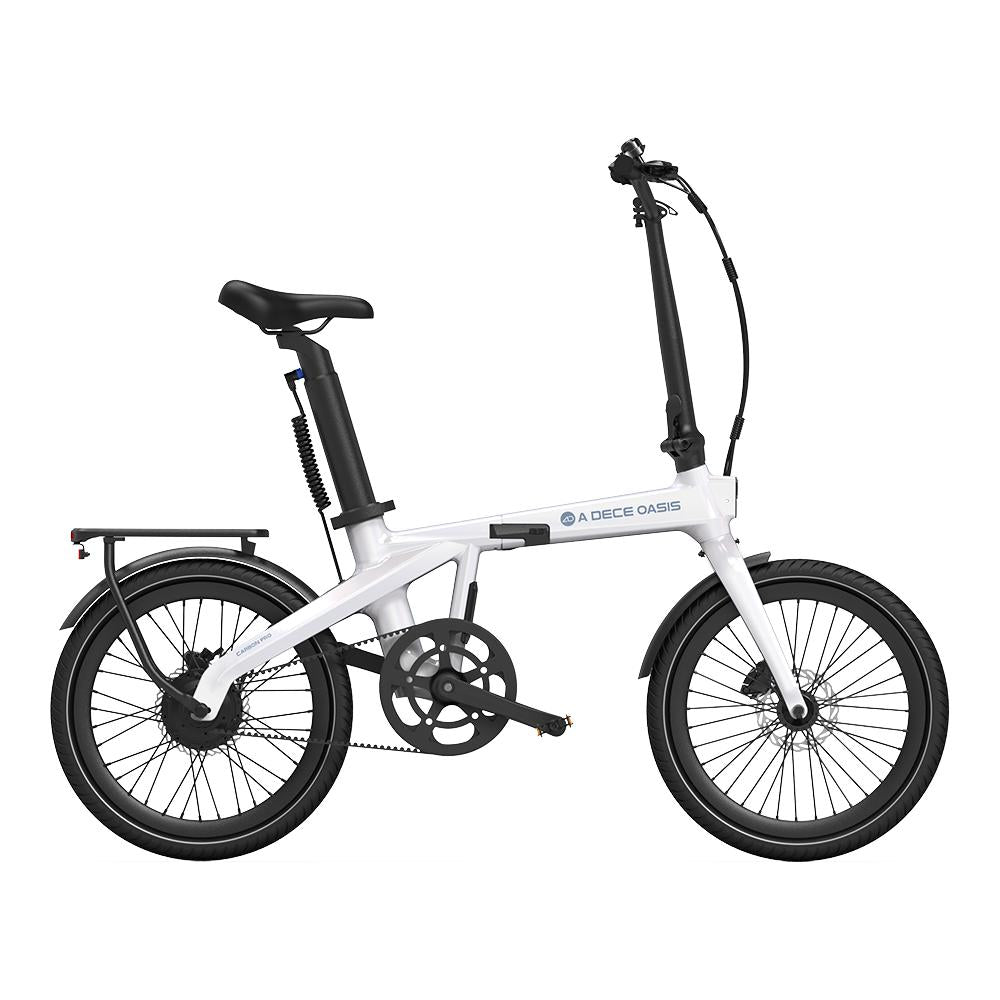

Pearly White

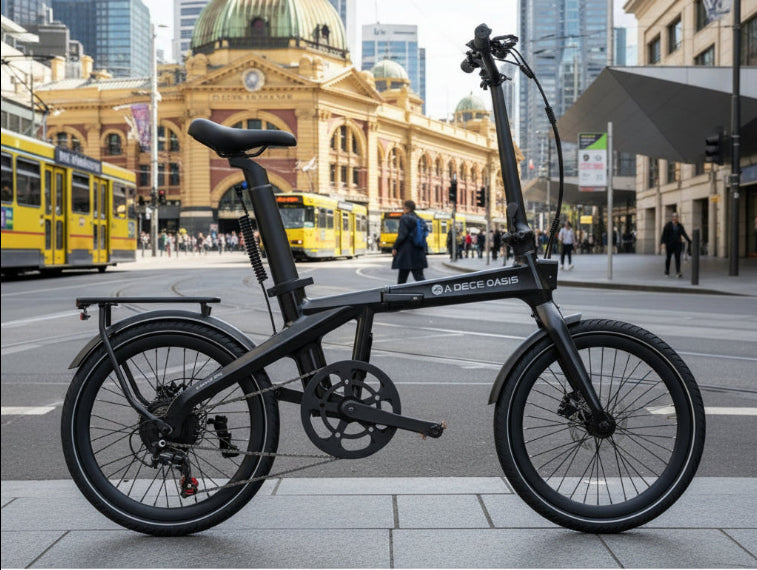

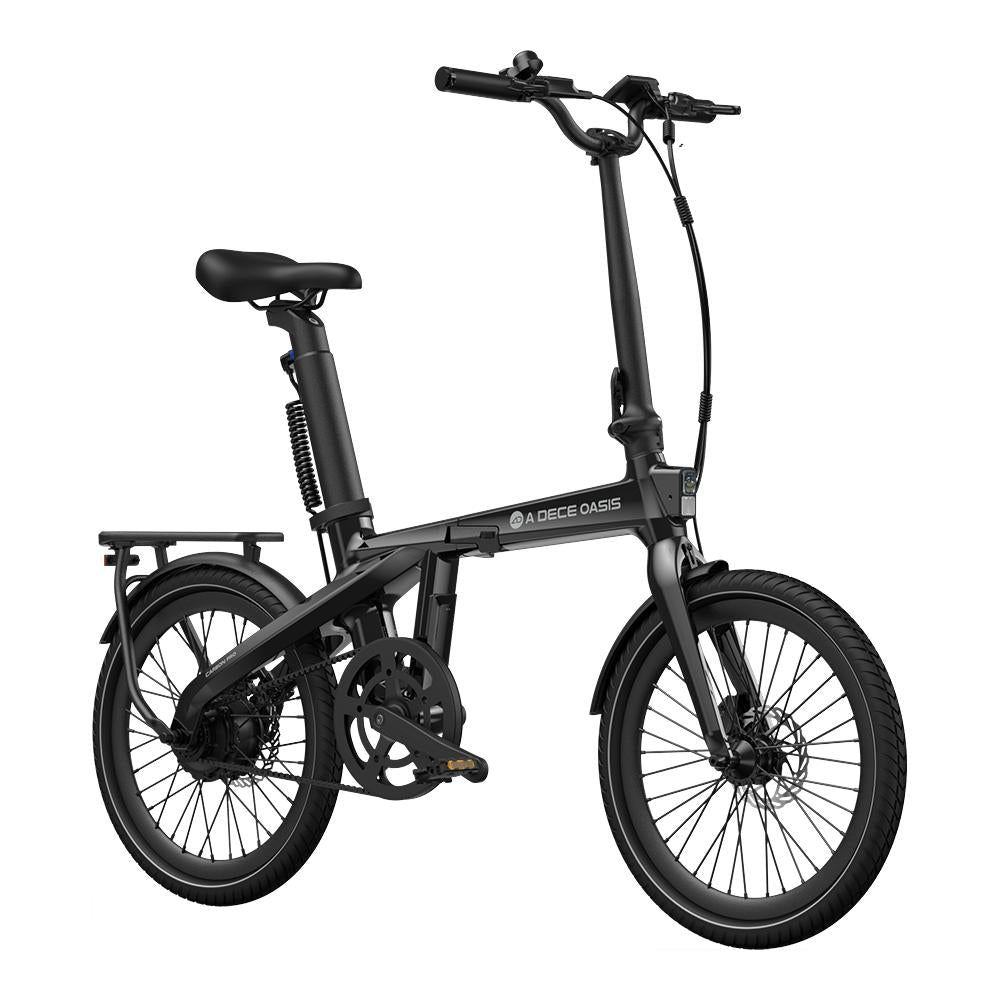

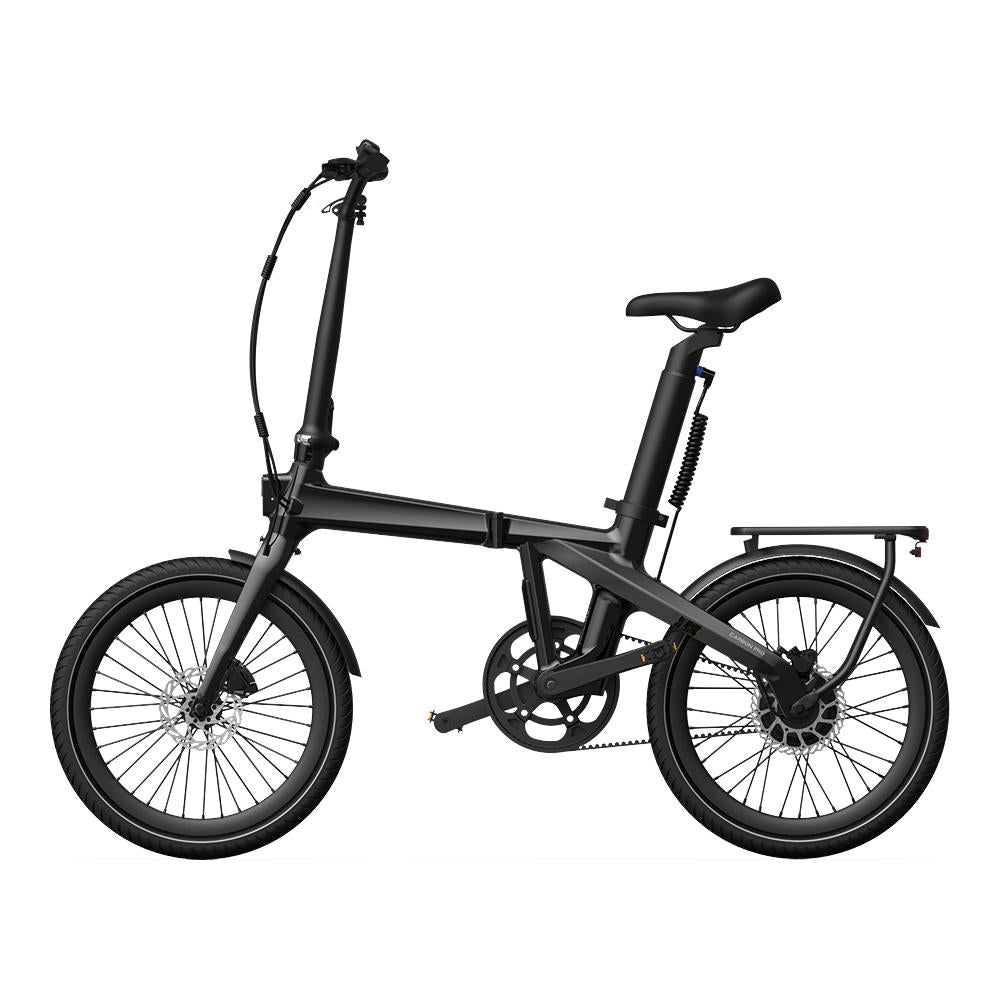

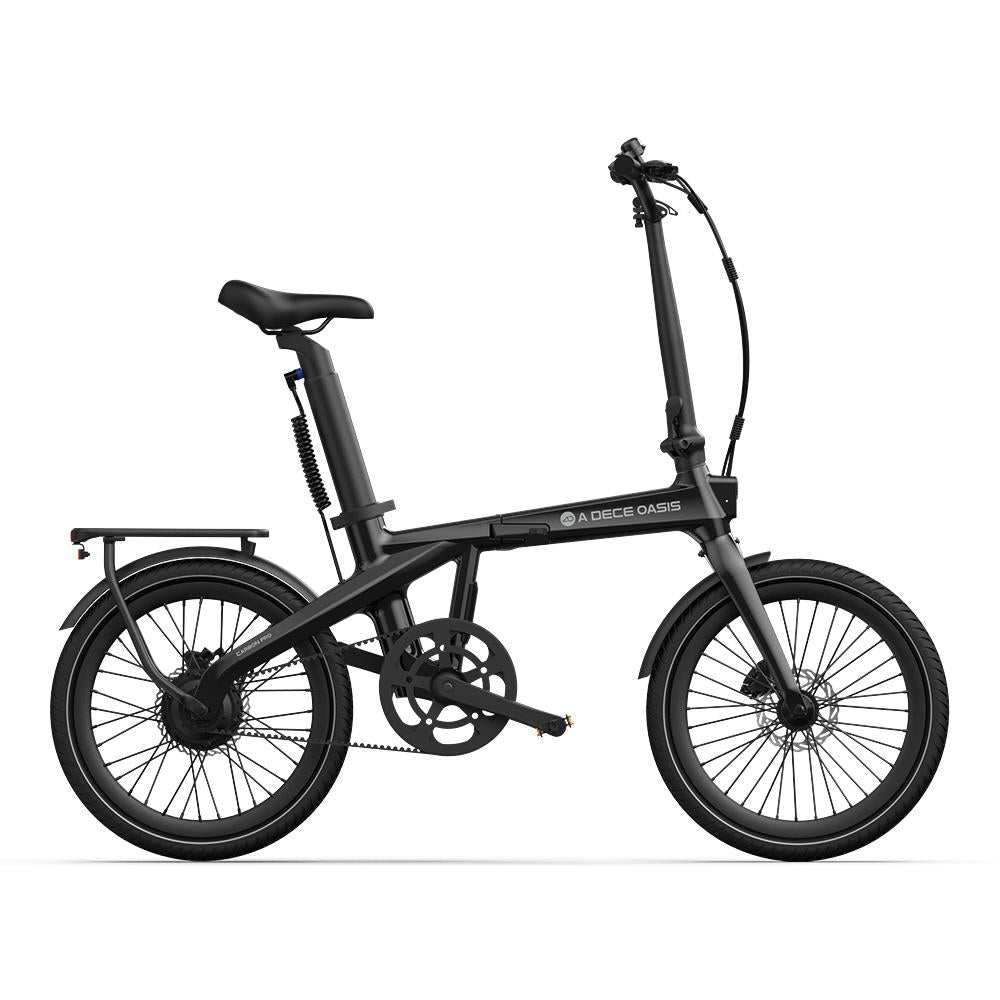

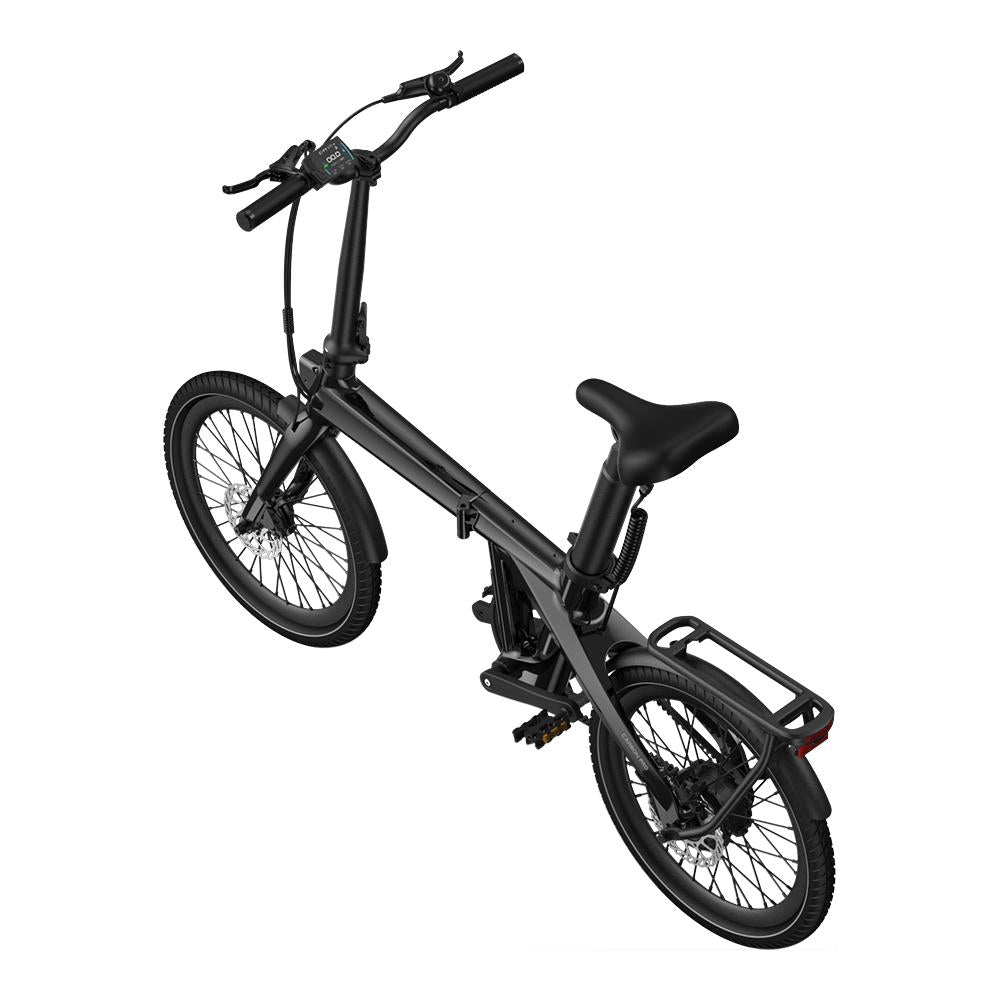

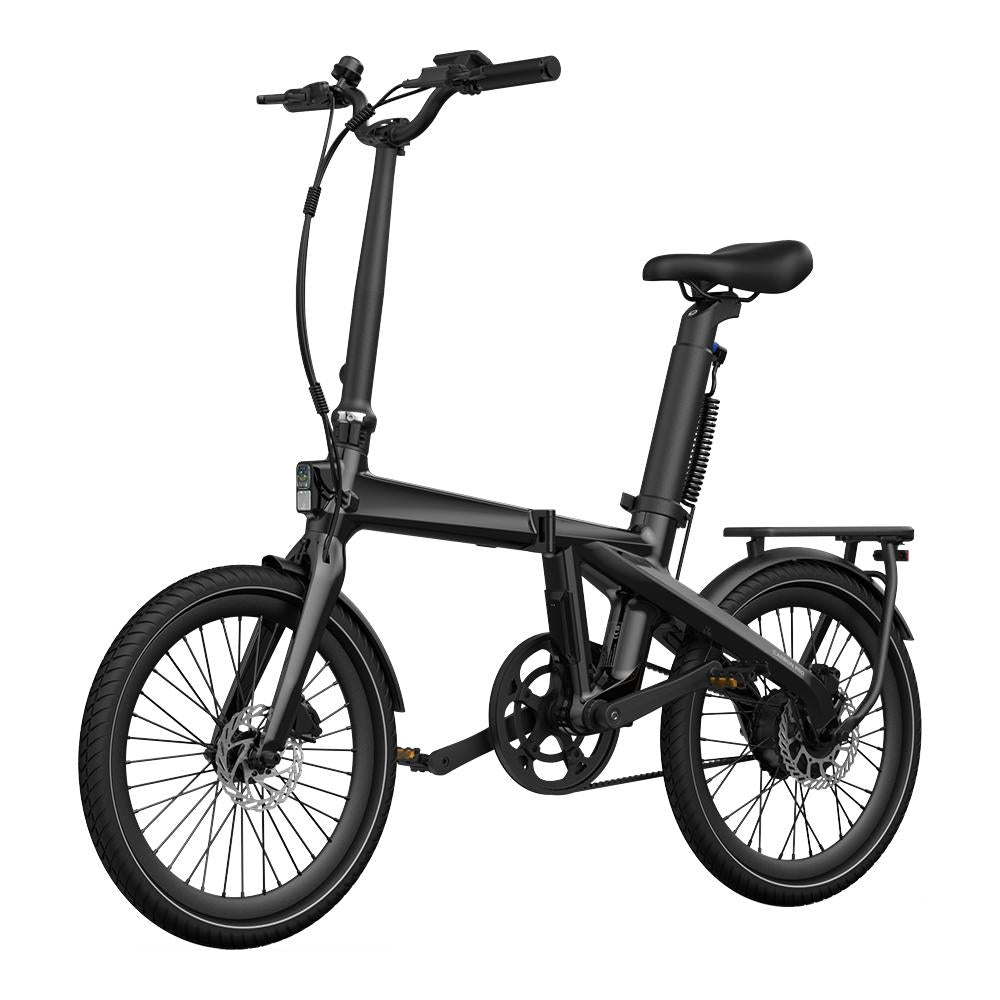

Iceland Black
250W/50N.m
16.2 kg
BAFANG H700 Hub Motor
Stronger torque for effortless acceleration and climbs.
NFC Power On/Off
Tap & Go in 1.7 seconds
Single Speed
250W / 35N.m
BAFANG H410 Hub Motor
Efficient, smooth power for everyday riding.
Button On/Off
Hold to power on/off
Refined Details. Enhanced Performance.
A redesigned Air Carbon, with less weight and more power.
- Security
- Electricity
- Design
Built-in Taillights
Built-in Taillights
Quick-release Foot Support
Quick-release Foot Support
GPS
GPS
Hydraulic Disc Brakes
Hydraulic Disc Brakes
Long-lasting Battery
Long-lasting Battery
BAFANG H700
BAFANG H700
Torque Sensor
Torque Sensor
NFC Display
NFC Display
Built-in Headlights
Built-in Headlights
MIK Rear Rack
MIK Rear Rack
Carbon Belt
Carbon Belt

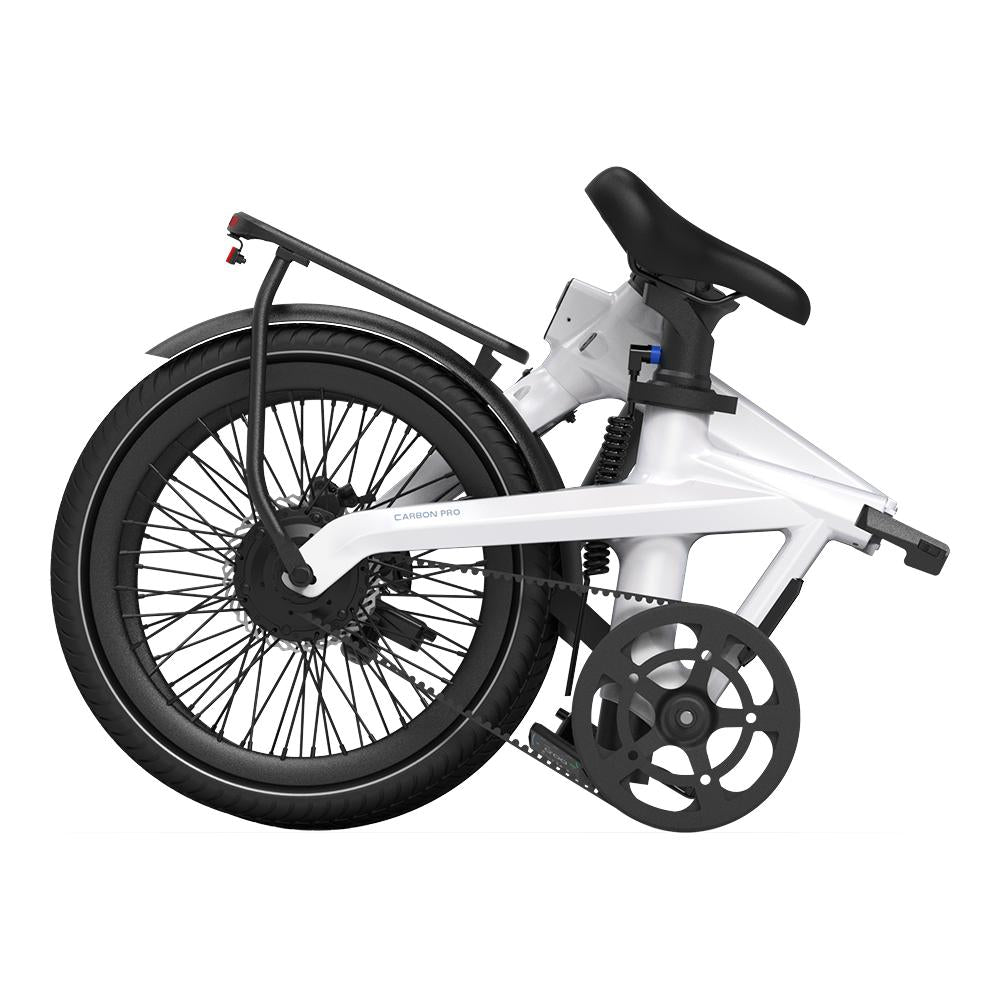

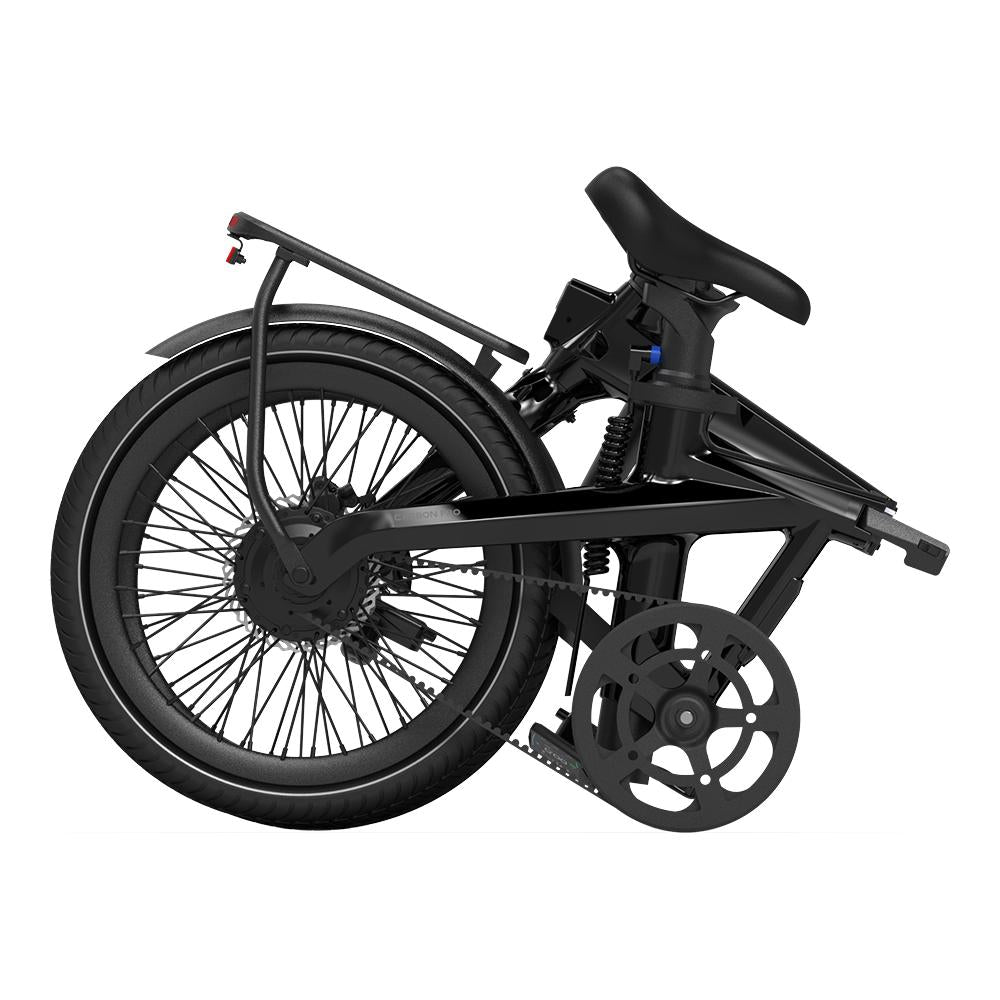

Quick Fold
Quick Fold
Bend Handlebar
Bend Handlebar
AQS 2.0
AQS 2.0
Integrated Rear Light
Integrated into the frame for enhanced style.
Smart Riding
Take control of your ride anytime.
Record rides and view your live riding statistics in the ADO app.
Send navigation directions to the bike’s integrated LCD display.
Contact the support team through the app’s help centre.
Made for Everyday Riding
Electronic Spec
-
Marked Power
250W
-
Peak Power
250W
-
Battery
37V/10 Ah
-
Throttle
Without
-
Charging Time
4-6 hours
-
Display
NFC / IPS Color
-
Torque
50N.m
-
Mode
ECO / Sport
General Spec
-
Range
100 km max range
*Actual performance will vary depending on temperature, road conditions, rider's weight, etc. -
Speed
25 km/h
*The motor will stop giving assist at the stated top speed. -
Weight
16.2 kg (including battery and standard accessories)
*All stated weight numbers have a +/- 3%-5% tolerance. -
Certificates
SGS CE
-
Waterproof Rating
IPX6 (Display: IPX7)
-
Transmission
Automatic Dual-Speed
-
Tyre Size
20*1.75 inch
-
Pedal Assist
Dual-sided Torque sensor
-
Pedal-assist levels
0-3 level pedal assist
-
Rider Heights
150cm-200cm
-
Weight Capacity
120kg
-
Working Temperature
-10~50°C
Components Spec
-
Frame
Carbon Fiber Frame
-
Brakes
TEKTRO Hydraulic disc brakes
-
Wheels
Double Walled Aluminum
-
Headlight
Built-in light DH011-W:[170lm]
-
Tail Light
Relector Tail Light
-
Chain Ring
Carbon Belt
-
Front Interface
ADO AQS 2.0 System
-
Rear rack
Aluminum alloy with MIK
（Maximum load: 15KG）
Geometry
-
SIZEmm
-
A Max Seat Height1010
-
B Min Seat Height760
-
C Standover Height650
-
D Seat Tube Length350
-
E Handlebar Height1190
-
F Bottom Bracket Height300
-
G Front to Center600
-
H Wheelbase1000
-
I Top Tube Length500
-
J Total Length1500
F.A.Q.
What’s the difference between Air Carbon and Air Carbon Pro?
Air Carbon is a lightweight, single-speed bike for simple daily riding (250W / 35Nm).
Air Carbon Pro upgrades to an auto dual-speed system with stronger torque (250W / 50Nm), lighter weight, and NFC unlock for a smarter, easier ride.
What kind of rider does ADO Air Carbon Pro suit?
This model is exceptionally light, weighing only 16.2kg (including battery and accessories), and is constructed from carbon fiber to deliver peak performance. It features a built-in GPS for anti-theft protection. Designed specifically for urban cycling.
Where can I download the APP?
1. Google Play: search "ADO EBIKE" and install.
2. Apple Store: search "ADO EBIKE" and install.
How long is the warranty period?
Warranty Period
- 12 Months
Coverage
- Manufacturing defects are repaired or replaced for free
- Lifetime technical support available (parts may cost after warranty)
Exclusions
- Wear-and-tear parts (tires, brake pads, spokes)
- Damage from misuse, modification, collision, or water
- Non-official channel purchases
How to Claim
contact support@mibike.net
